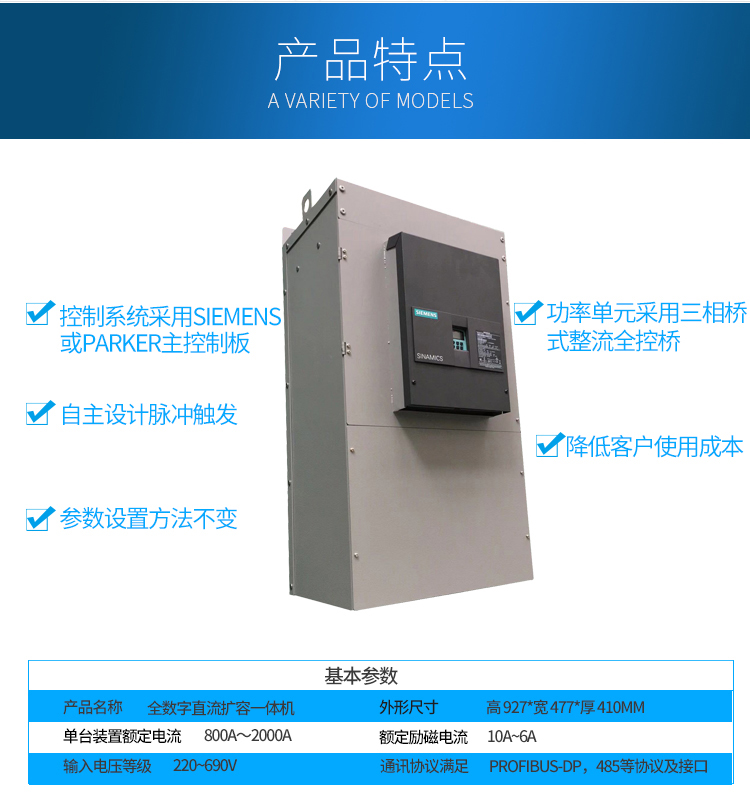

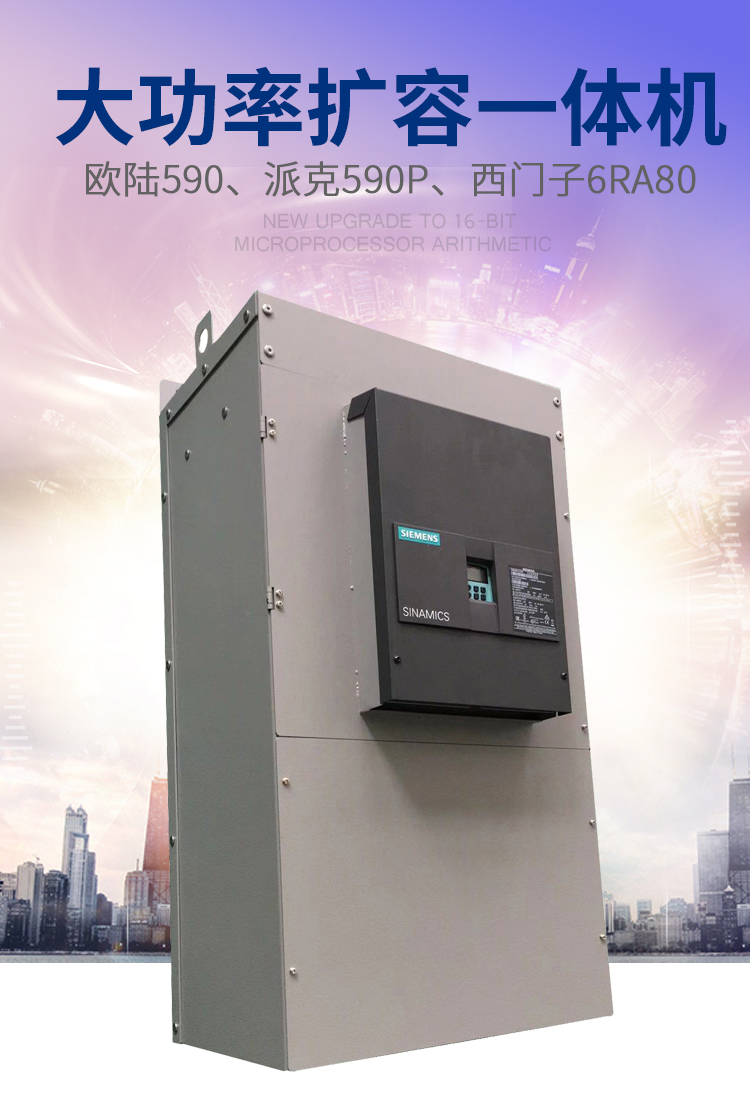

DC900-大功率擴容調速器——DC900直流調速器

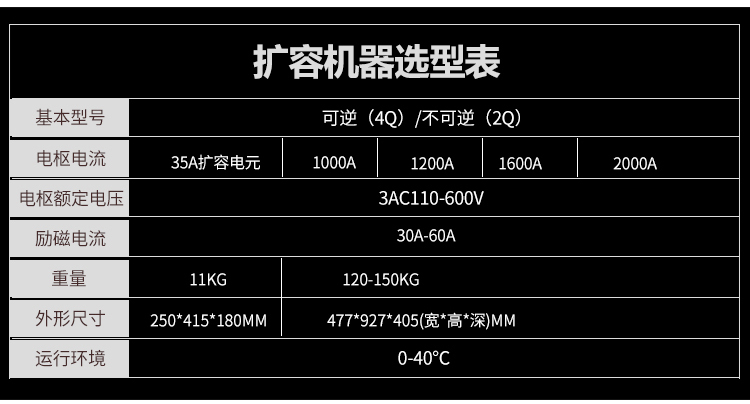

額定參數Ratings
額定電流Current ratings
800A with overload and 900A no overload. @ 500Vdc
1200Awith overload and 1300A no overload. @ 500Vdc
1600A with overload and 1700A no overload.@ 500Vdc
2000A with overload and 2200A no overload.@ 500Vdc
額定電壓Voltage ratings :
380 - 500Vac
690Vac/600Vac UL.
過載能力Overload:
150% for 30 seconds
200% for 10 seconds.
優點：
同功率下,比SIEMENS系列更緊湊
More compact than SIEMENS Size H of the same current rating
具有與主流驅動器的競爭力
Comparable to major competitors’ drives
成本效益更好A more cost effective drive
同樣的控制,同樣的特點, …
Same control board, same features, …
ICP減少20%到50%
ICP reduced by 20% to 50%+
