What are the brands of domestic DC Drive? Recommend TLDE DC900C | P series!

Domestic DC Drive brand - recommended -TLDE DC900 C series /p series full digital Chinese and English DC Drive!

TLDE- Domestic brand, China power, independent research and development, committed to serving high-end manufacturers!

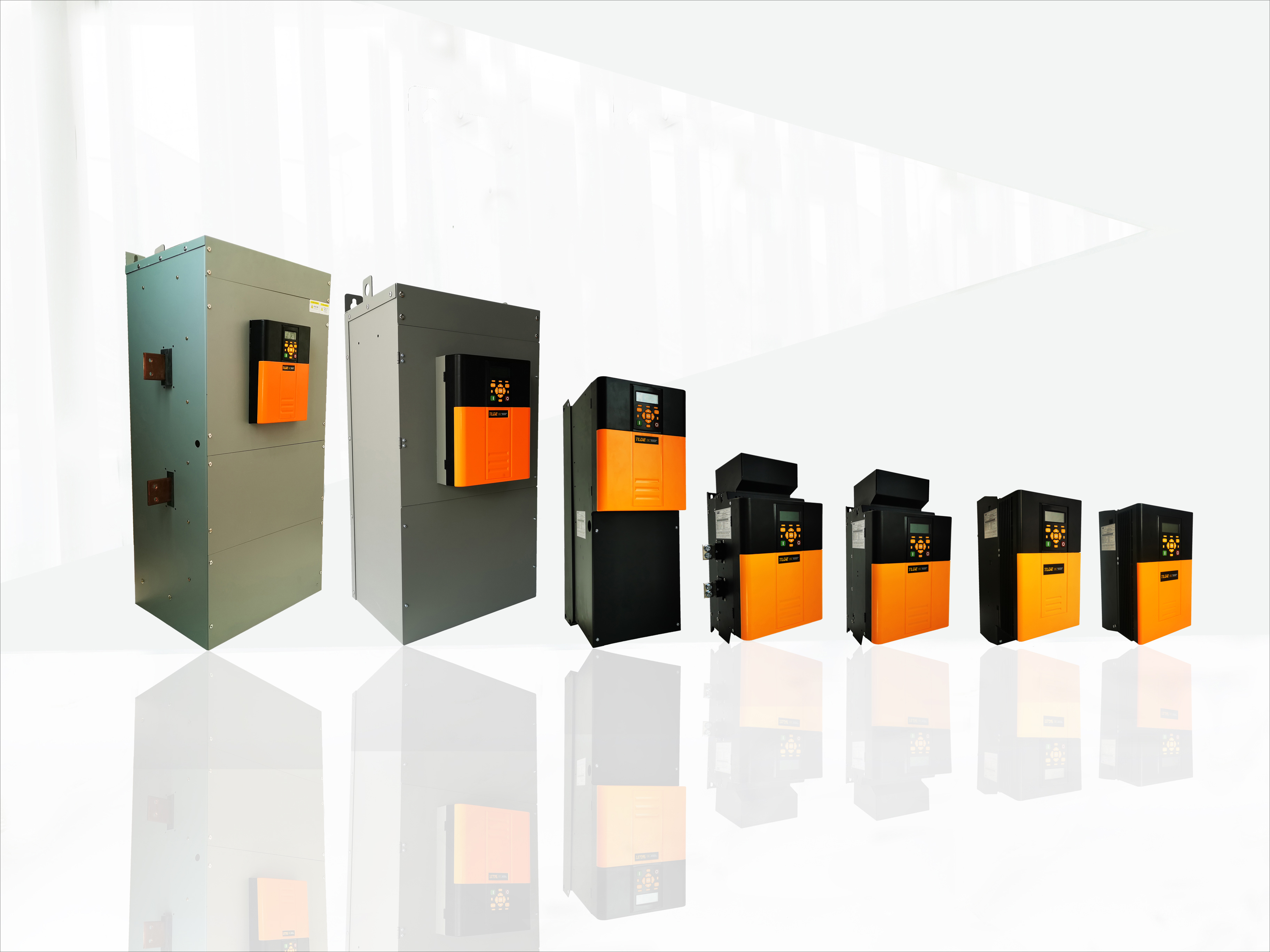

TLDE DC900 C series DC Drive

The DC900C series is a new generation of high-performance full digital Chinese/English DC Drive designed to meet a variety of speed control applications; From a single DC motor control to the most complex multi-motor drive systems can be achieved with simple programming Settings. The development of this product brings high performance commercial applications for motor control.

Common Features

Functional features

It can be applied to the three-phase AC voltage supply of various standards in different countries. It is applied to the speed control or torque control of separately excited, shunt excited and permanent magnet DC motor.

With the exception of the thyristors, all DC900 series DC governors use the same control and power supply panels in multiple specifications of DC motor speed regulation systems.

The control circuit and the power circuit are completely isolated, the coding circuit has the function of automatic adjustment, can apply to the power frequency between 45-60hz, with strong anti-interference ability.

Graphical configuration and programming software - the governor internal each function module flexible connection;

Bilingual liquid crystal display - Chinese and English liquid crystal display, and make complex governor parameters more convenient to understand;

Advanced, fast and high-precision control algorithm provided by 32-bit CPU:

● Complex control algorithm.

● Special application modules that can be configured by software.

The three feedback modes can be switched through the internal selection of the software

● Armature voltage feedback - built-in standard;

Dc velocity generator feedback card - optional;

● Encoder feedback card - optional;

Various communication cards are available for selection

A variety of communication cards available for selection, support standard PN,DP and modbus communication protocols, ESD protection design, communication anti-interference ability;

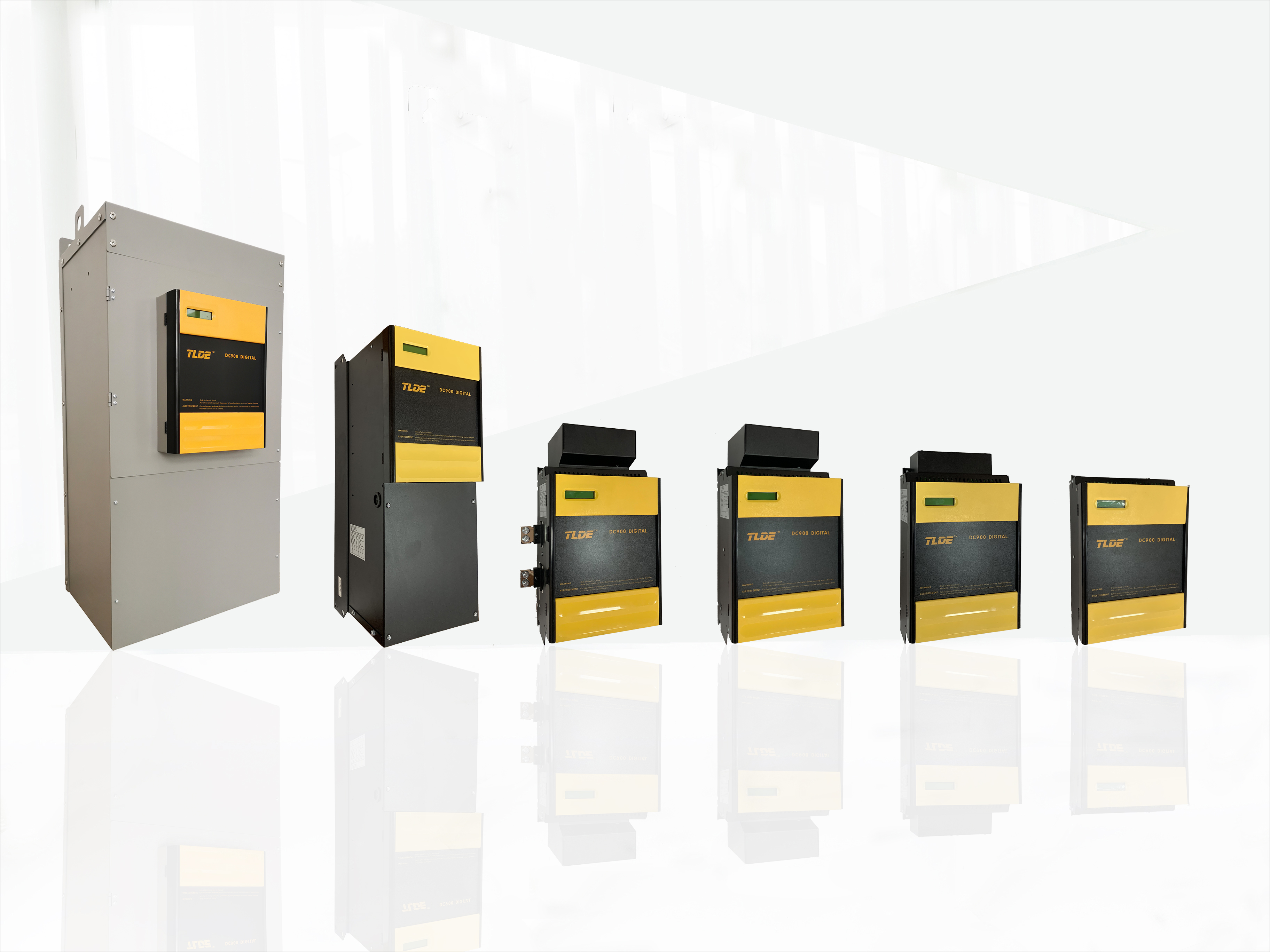

TLDE DC900 P series DC Drive

The DC900P is a new generation DC Drive that uses an advanced control platform to provide high flexibility and high performance for a wider range of applications. Widely used in system integration design, DC900P has functional block programming, multiple communication protocol support and feedback options. Available in 2Q or 4Q options, standard output range 20-850A.

Common Features

Functional features

The DC900P DC governor is based on a high-performance 32-bit microprocessor to provide more advanced functions and performance, and can be integrated with the AC controller in the same system:

●DC900P provides the function block programming software DSELite is based on computer Windows operating system modular configuration software. Each control function block is designed as a software module, which can realize the internal free connection, and it becomes very easy to achieve the functions required by users;

● A large number of communication and I/O options can be controlled applications or integrated into a larger system, easy to create functional programming, custom functions and controls to provide users with high flexibility and multi-functional DC motor control platform

● Large screen bilingual liquid crystal display - English and Chinese liquid crystal display, intuitive menu structure, engineering environment design of the operation panel, to achieve fast and simple access to all parameters and function blocks of the driver. In addition, it provides local start/stop, speed setting and direction control, which provides great convenience for equipment debugging.

● Fast debugging, performance optimization and easy maintenance: With its self-tuning algorithm, the DC900P can be configured and debugged in minutes without adjusting the motor and without requiring a high level of engineering knowledge. High precision current feedback (0.06%) to achieve more stable low speed control, operation interface can realize equipment operation monitoring and simple maintenance.

Low RS485 / RTU

Low Canopen

Low profibus-dp

Low Profinet

A variety of communication cards available for selection, support standard PN,DP and modbus communication protocols, ESD protection design, communication anti-interference ability;

DC900P DC governor is widely used in cable, metallurgy, rubber and plastic, papermaking, material handling, test bench and other industries.
